| 主要技術(shù)參數(shù) | |

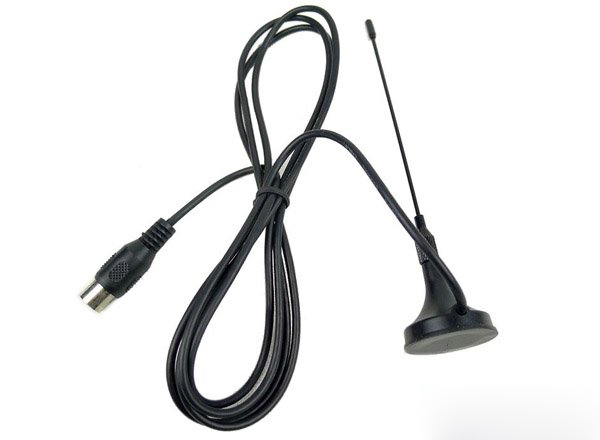

| 型 號Model | DVB-TTS004 |
| 頻 率Frequency range | VHF174-230/UHF470-860MHZ |
| 駐 波VSWR | ≤1.5 |
| 增 益Gain | 3DBi |
| 極化型式Polarization | 垂直 Vertical |
| 最大功率Maximum input power | 50W |
| 輸入阻抗Impedance | 50Ω |
| 線型Cable type | RG174 |
| 線長Length | 3 M or 5M |
| 接口型式Input Connector | IEC or F,SMA |
| 天線尺寸Dimensions of Antenna | Φ30×150mm |
| 重 量Weight | 50g |
